    cc hydro logo 576 1

    CC Hydro™ is the world’s first all-in-one armored impermeable liner for a wide range of containment applications, such as bund lining, lagoon lining, tank wall remediation and tank base lining. CC Hydro™ removes the need for protective top cover, dramatically reducing installation times and simplifying logistics.

    WHAT IS CC HYDRO?

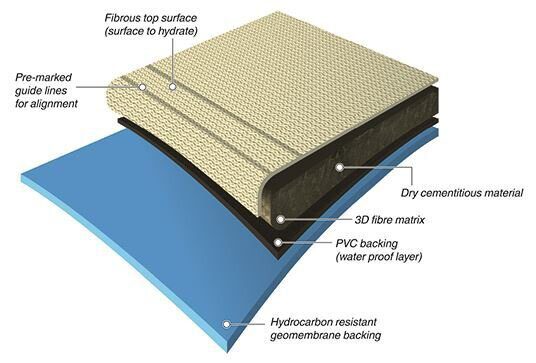

    CC Hydro™ (CCH) combines the concrete filled geotextile technology of Concrete Canvas® with a highly impermeable, chemically resistant geomembrane liner. The liner incorporates a hi-visibility welding strip which allows joints to be thermally welded with a double-track or triple-track air channel for on-site testing. The product was specifically developed for applications within the Petrochemical and Oil & Gas industries.

    CCH is available in 5mm and 8mm thicknesses: CCH5™ and CCH8™ respectively.

    CCH Illustration new

    CC HYDRO USER BENEFITS

    benefits icons All In One Solution

    ALL-IN-ONE SOLUTION

    CC Hydro™ combines the impermeability of a containment liner with the hard armor protection and durability of concrete, reducing install times and simplifying logistics.

    benefits icons No Top Cover

    NO TOP COVER

    CC Hydro™ does not require a protective top cover. This removes the need for additional excavation, treatment of contaminated arisings and import of costly fill material.

    benefits icons Maintains Volume Capacity

    MAINTAINS VOLUME CAPACITY

    CC Hydro™ can be laid directly onto existing profiles without loss of volume capacity for refurbishment projects, providing significant overall time and cost savings.

    benefits icons Reduced Life cycle Costs

    REDUCED LIFE-CYCLE COSTS

    CC Hydro™ provides effective weed suppression, eliminating the ongoing maintenance cost of soil covered systems. It reduces the end-of-life costs associated with treatment of any contaminated top cover.

    CC KEY PROPERTIES

    HIGH IMPERMEABILITY

    CCH has excellent impermeability. It has been independently tested to BS-EN-1377 to have a hydraulic conductivity better than 1×10-12 m/s.

    DURABLE

    CCH has a hard armor surface, protecting the geomembrane liner from in-service puncture, abrasion, weathering, burrowing animals and UV degradation.

    CHEMICAL RESISTANCE

    CCH has been shown to have excellent resistance to a wide range of chemical reagents, including hydrocarbons, digestates and acidic leachates.

    TESTABLE JOINTS

    CCH incorporates a high-visibility welding strip, allowing the joint to be thermally bonded with an air channel for fast and simple on-site pressure testing of 100% of the welding joint without additional offsite destructive testing.

    CC Hydro

    FORMATS

    Product Concrete Thickness (inch / mm) Bulk Roll Size (ft²) Roll Width (ft) Mass per Unit Area (unset) (lb/ft²) Concrete Density (unset) (lb/ft3) Density (set) (kg/m3)
    CCH5 0.2 / 5 1614.59 3.28 1.64 89.27 – 96.14 +30-35%
    CCH8 0.3 / 8 1076.39 3.28 2.66 89.27 – 96.14 +30-35%
    Product CCH5
    Concrete Thickness (inch / mm) 0.2 / 5
    Bulk Roll Size (ft²) 1614.59
    Roll Width (ft) 3.28
    Mass (unset) (lb/ft²) 1.64
    Concrete Density (unset) (lb/ft3) 89.27 – 96.14
    Density (set) (lb/ft3) +30-35%
    Product CCH8
    Concrete Thickness (inch / mm) 0.3 / 8
    Bulk Roll Size (ft²) 1076.39
    Roll Width (ft) 3.28
    Mass (unset) (lb/ft²) 2.66
    Concrete Density (unset) (lb/ft3) 89.27 – 96.14
    Density (set) (lb/ft3) +30-35%

    For more CC Hydro Downloads, click here:

    More Downloads
