    Concrete Canvas® is used for a wide range of erosion control and weed suppression applications. It allows concrete construction with minimal plant and specialist training.
    Typically ten-times faster to install than conventional solutions, essentially its Concrete on a Roll™: simply unroll and Just Add Water.

    WHAT IS CC?

    CC consists of a 3-dimensional fibre matrix containing a specially formulated dry cementitious mix. A PVC backing ensures the CC is completely waterproof. CC can be hydrated by spraying or full immersion in fresh or salt water. Once set, the fibres reinforce the cementitious mix, preventing crack propagation and providing a safe plastic failure mode. As a result, CC provides a thin, durable, water proof and lower carbon alternative to traditional concrete.

    CC is available in 3 thicknesses: CC5™, CC8™ and CC13™, which are respectively 5, 8 and 13mm thick.

    CC USER BENEFITS

    RAPID INSTALLATION

    CC can be laid at a rate of 200m²/hour, up to 10 times faster than conventional concrete solutions.

    EASY TO USE

    CC requires less plant, less personnel and no on-site mixing or measuring. Just add water. Available in man-portable batched rolls.

    LOWER PROJECT COSTS

    The speed and ease of installation mean CC is more cost-effective than conventional concrete, with less logistical burden. For example, a single lorry of CC8 can substitute for thirty 17T Mixer Trucks.

    ECO-FRIENDLY

    CC is a low mass, lower carbon technology which uses up to 95% less material than conventional solutions. A single pallet of CC can cover the same area as two 17T mixer trucks for many applications.

    CC KEY PROPERTIES

    STRONG

    The fibre reinforcement prevents cracking, absorbs energy from impact and provides a stable failure mode.

    DURABLE

    CC is five-times as abrasion resistant as standard OPC concrete, has excellent chemical resistance, good weathering performance and will not degrade in UV. CC is BBA certified with a durability in excess of 120 years when used in erosion control applications.

    FLEXIBLE

    CC has good drape characteristics and will closely follow the ground profile and fit around existing infrastructure. Unset CC can be cut or tailored using basic hand tools.

    WATERPROOF

    The PVC backing ensures the CC is completely waterproof.

    FORMATS

    CC is available in two standard roll sizes: bulk rolls or smaller, lighter batched rolls. The quantity per roll differs between the CC types as shown in the table below.

    CC Type Thickness (mm) Roll Width (m) Mass per Unit Area (kg/m²) Batched Roll Coverage (m²) Batched Roll Length (m) Bulk Roll Coverage (m²) Bulk Roll Length (m)
    CC5 5 1.0 7 10 10 200 200
    CC8 8 1.1 12 5 4.55 125 114
    CC13 13 1.1 19 N/A N/A 80 73

    CC is available in two standard roll sizes: bulk rolls or smaller, lighter batched rolls. The quantity per roll differs between the CC types as shown in the table below.

    CC Type CC5
    Thickness (mm) 5
    Roll Width (m) 1.0
    Mass per Unit Area (kg/m²) 7
    Batched Roll Coverage (m²) 10
    Batched Roll Length (m) 10
    Bulk Roll Coverage (m²) 200
    Bulk Roll Length (m) 200
    CC Type CC8
    Thickness (mm) 8
    Roll Width (m) 1.1
    Mass per Unit Area (kg/m²) 12
    Batched Roll Coverage (m²) 5
    Batched Roll Length (m) 4.55
    Bulk Roll Coverage (m²) 125
    Bulk Roll Length (m) 114
    CC Type CC13
    Thickness (mm) 13
    Roll Width (m) 1.1
    Mass per Unit Area (kg/m²) 19
    Batched Roll Coverage (m²) N/A
    Batched Roll Length (m) N/A
    Bulk Roll Coverage (m²) 80
    Bulk Roll Length (m) 73

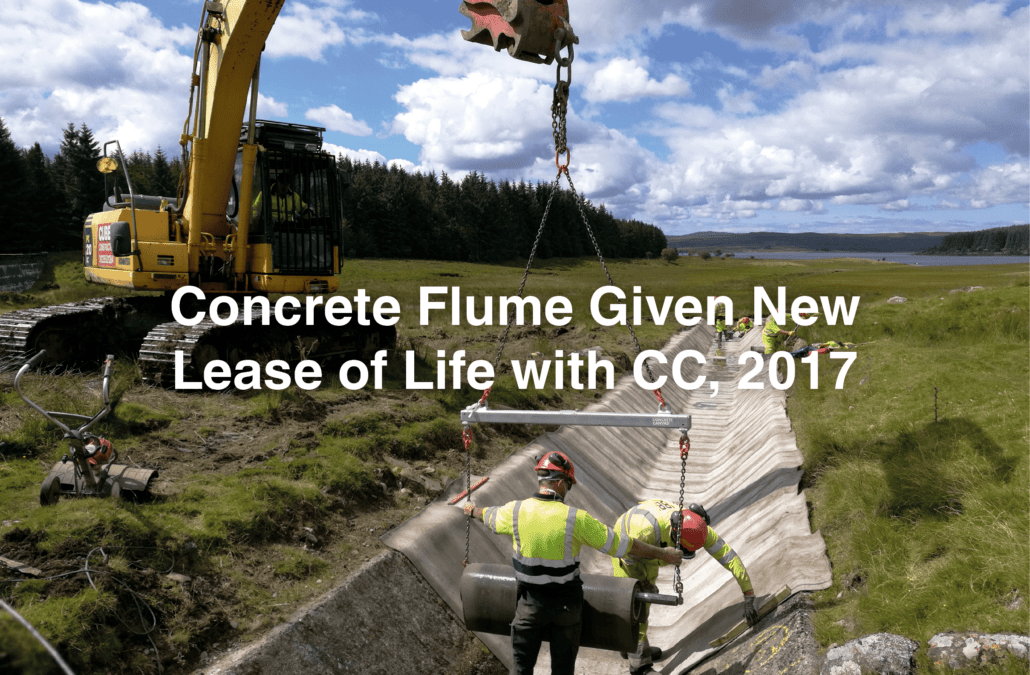

    Concrete Flume Given New Lease of Life with CC, 2017

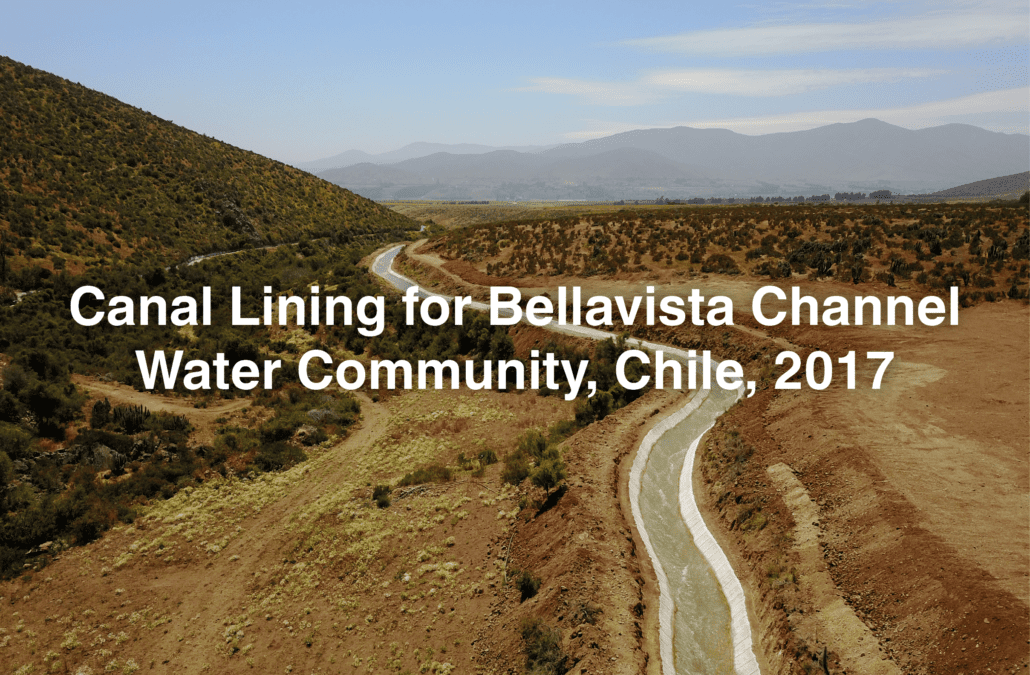

    Canal Lining for Bellavista Channel Water Community, Chile, 2017

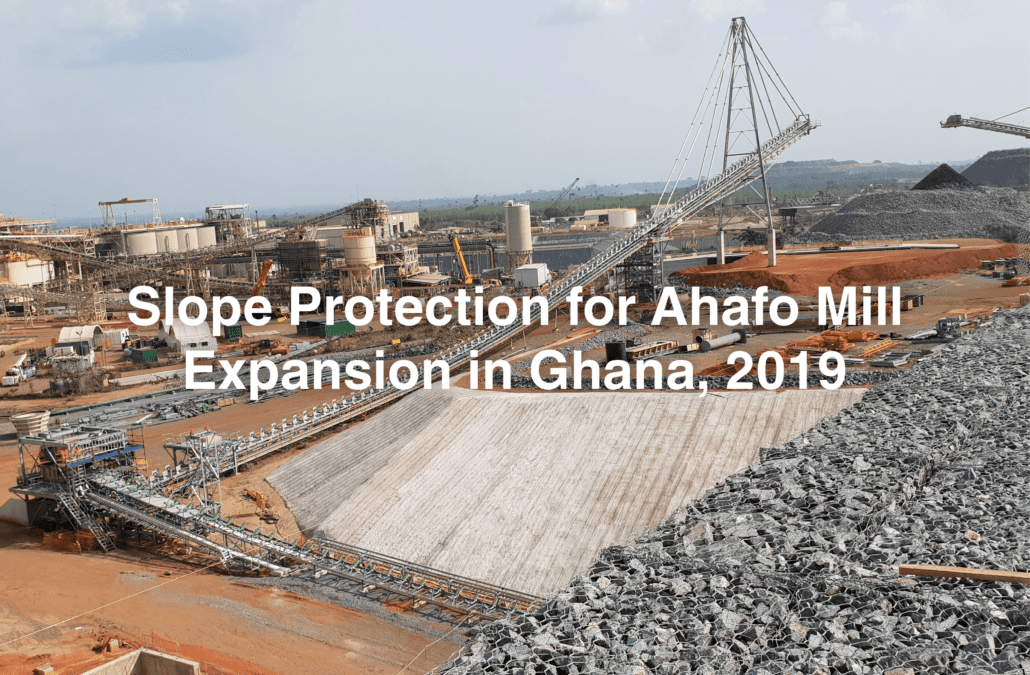

    Slope Protection for Ahafo Mill Expansion in Ghana, 2019
