SLOPE PROTECTION

A common use for Concrete Canvas® (CC) is slope protection. With no requirement for heavy plant, CC can be installed on limited access sites, a significant advantage over traditional poured or sprayed concrete. Batched rolls of CC allow for manual transportation on site, while bulk rolls can be deployed from a slope’s crest for safer installation.

Slope Protection 100px compressor

WHY USE CC?

CC can be laid up to 10-times faster than conventional concrete solutions, reducing time on site and asset closures. Unlike traditional methods, CC generates no rebound, reduces the need for line or lane possession and can be installed around sensitive infrastructure. CC is five-times as abrasion resistant as standard OPC concrete, has excellent chemical resistance, good weathering performance and will not degrade in UV. CC provides excellent weed suppression, reducing maintenance, life cycle costs and Occupational Health & Safety risks.

Read more

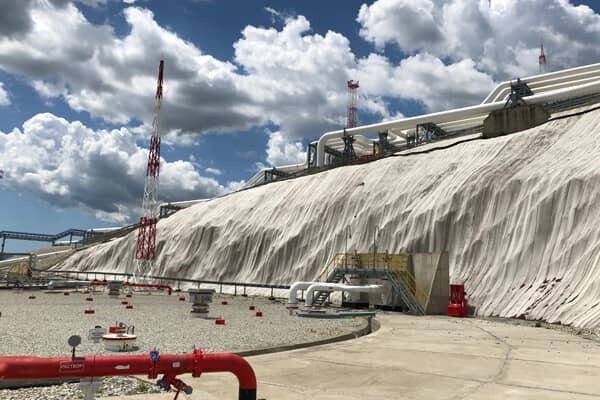

OPC Russia slope protection

Weed & Erosion Control on Sensitive OPC Slope in Russia, 2018

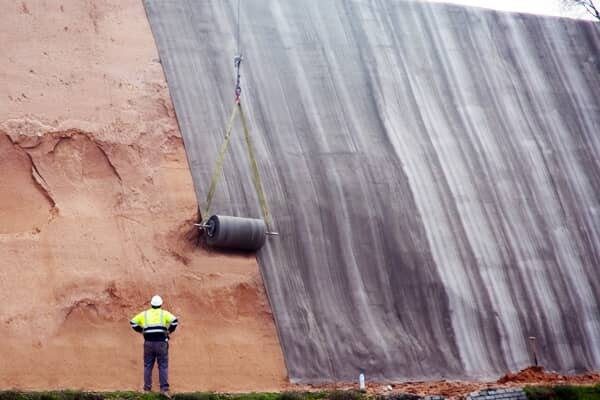

Alcobendas Station Spain Slope

Slope Protection at Alcobendas Station for ADIF, 2010

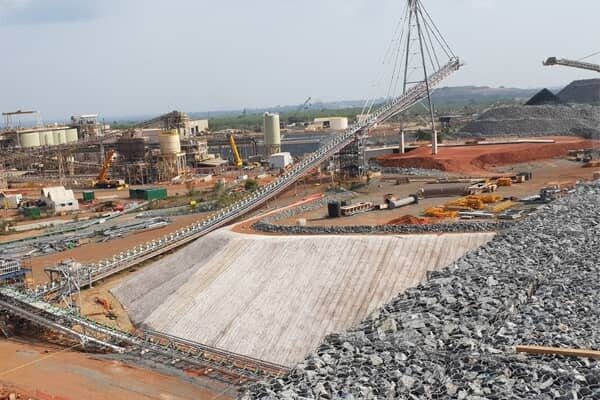

Ahafo Ghana mine slope

Slope Protection for Ahafo Mill Expansion in Ghana, 2019

INSTALLATION PRINCIPLES

1708 4 Principles Separation Avoid Voids

AVOID VOIDS

Prepare the substrate so that surfaces are well compacted, geotechnically stable with a smooth, uniform surface.

1708 4 Principles Separation Secure Canvas

SECURE CC

It is important to prevent water and wind ingress between the CC and the substrate, both around the perimeter of the installation and along the joints.

1708 4 Principles Separation Prevent Ingress

PREVENT INGRESS

It is important to ensure that the CC is jointed at every overlap between layers and that those layers are fixed to the surface.

1708 4 Principles Separation Hydrate Fully

HYDRATE FULLY

It is important to properly hydrate CC, using enough water for the quantity of material used and allowing for drying conditions.

WATCH THE VIDEO

DOWNLOADS

For more Slope Protection downloads, click here:

More Downloads
