Concrete Canvas® Shelters (CCS) are rapidly deployable hardened shelters that require only water and air for construction. Essentially, it’s a building in a bag.

WHAT ARE CC SHELTERS?

CC Shelters (CCS) use inflation to create a surface that is optimised for compressive loading. This allows thin-walled concrete structures to be formed which are both robust and lightweight.

CCS are constructed from Concrete Canvas CC13, bonded to the outer surface of a plastic inner. Once inflated, it which forms a Nissen-Hut shaped structure.

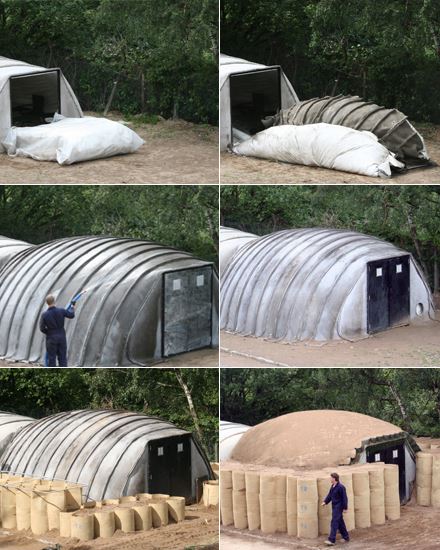

CCS are deployed in four stages: delivery, inflation, hydration and setting.

ccs side illustration 2 1507

CC SHELTERS USER BENEFITS

benefits icons Durable

DURABLE

CCS are far more durable than conventional, soft skinned tents. They have a design life of over 10 years.

benefits icons Secure

SECURE

The hard shell and lockable doors of a CCS provide a level of security not possible with soft skinned structures, protecting stores, equipment and personnel.

benefits icons Earth Berming

EARTH BERMING

The compressive structure of CCS has been modelled to be covered with sand or earth fill. This provides additional thermal mass and insulation, and an excellent level of thermal performance.

benefits icons Rapid Construction

RAPID CONSTRUCTION

A 25m² CCS can be deployed by 2 people in less than 1 hour and is ready to use in 24 hours.

CC SHELTER ADVANTAGES

CCS have two major advantages over conventional tented shelters:

OPERATIONAL

CCS constitute a hardened structure from day one of an operation.
They provide much better environmental protection, increased security and improved medical capability.

FINANCIAL

CCS have a design life of over 10 years, whereas tents wear out rapidly and must then be replaced.
CCS’ are a one-stop solution, saving effort and cost over the lifetime of medium to long-term operations.

cc shelter montage 1488

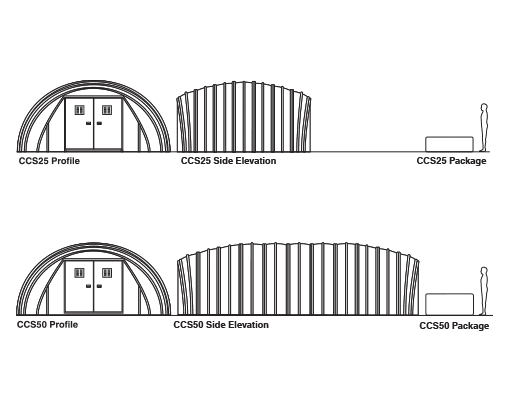

FORMATS

CCS structures consist of Concrete Canvas® fixed to an inflatable inner with integral steel door sets at each end.

Unit Length (m) Width (m) Height (m) Internal Area (m2)
CCS25 5.00 5.60 2.45 25.00
CCS50 9.50 5.60 2.60 50.00
Unit CCS25
Length (m) 5.00
Width (m) 5.60
Height (m) 2.45
Internal Area (m2) 25.00
Unit CCS50
Length (m) 9.50
Width (m) 5.60
Height (m) 2.60
Internal Area (m2) 50.00

PACKING

CCS are supplied in polyethylene, airtight, water proof, rot proof packaging within ISPM15 heat treated timber/ply panel crates.

MODULARITY

CCS structures are designed as part of a modular system; units can be docked together to create arrays of structures to suit operational requirements.

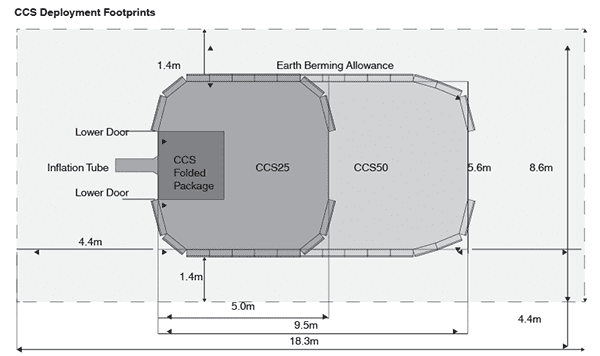

REQUIREMENTS FOR DEPLOYMENT

Both CCS variants can be deployed by 2 people. A CCS50 will require a vehicle or winch to aid with the unfolding of the shelter prior to inflation. Each shelter is provided with the ground pegs required for inflation.

CCS Footprint 2 resized
