WHY USE CC?

CC’s unique formula means it cannot be over-hydrated, allowing installation in wet weather and even underwater. CC produces no back spray, eliminating problems associated with using sprayed concrete or resin based systems around sensitive infrastructure.

CC Hydro is recommended for lagoon lining projects as it has excellent impermeability and has a hydraulic conductivity better than 1×10-12 m/s as per independent testing to BS-EN-1377. CC Hydro incorporates a high-visibility welding strip, allowing the joint to be thermally bonded with a twin-track air channel for fast and simple on-site pressure testing, and strong, lasting joints.



INSTALLATION PRINCIPLES

Avoid Voids

Avoid Voids

Secure CC

Secure CC

Prevent Ingress

Prevent Ingress

Hydrate Fully

Hydrate Fully

Prepare the substrate so that surfaces are well compacted, geotechnically stable with a smooth, uniform surface.

It is important to ensure that the CC is jointed at every overlap between layers and that those layers are fixed to the substrate.

It is important to prevent water or wind ingress between the CC and the substrate, both around the perimeter of the installation and along the joints.

It is important to properly hydrate CC, using enough water for the quantity of material used and allowing for drying conditions.



Bank Erosion Protection Oman Read More January 2014
Cabral Engenharia Lagoon Lining Vazante, Minas Gerais, Brazil Read More 2015 Case Study
Moulding Contracts Limited Lagoon Lining Oil Distribution Terminal Site, UK Read More 2014 Case Study

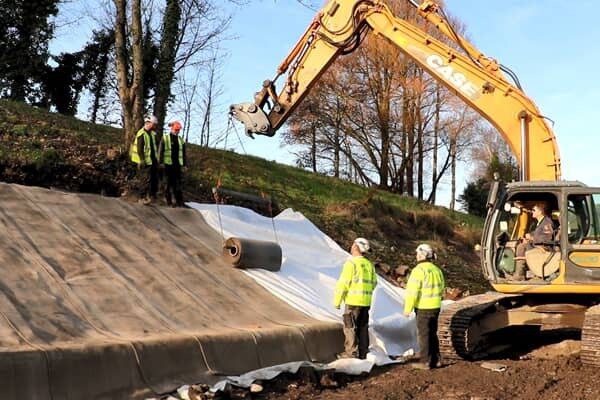

Natural Resources Wales Bank Erosion Protection Pontypridd, Wales, UK Read More November 2016
Alpasa Lagoon Lining Bella Vista, Norte, Paraguay Read More March 2018
Pasir Gudang Municipal Council Bank Erosion Protection Pasir Gudang, Johor Bahru, Johor Read More September 2017



DOWNLOADS

Product Brochures (3)


CC Civil Brochure
CC & CCH (M)SDS
CC Data Sheet

Case Studies (24)


CC Case Study Compilation - Mining
CC Case Study Compilation - Utilities
CC Blow Down Pit Lining - Middle East
CC Training Pool Lining - Japan
CC Flood Dam Lining - South Africa
CC Lagoon Lining - Albania, Colombia
CC Lagoon Lining - Almina, Portugal
CC Lagoon Lining - Kingscliffe Landfill, UK

Sign in to access further information

To access Technical Certification and Drawings, please sign-up.

SIGN-UP

You are about to download some of the more specialised technical information about Concrete Canvas. It is in our legitimate interest to support our clients in interpreting the information and helping you understand whether Concrete Canvas can help in your project. With this intent in mind, we may keep your contact details and try to get in touch.

We will not share your personal data with any 3rd parties and will only store it for a limited amount of time if no common business is achieved. If you object to this, you can contact us at any time and ask us to permanently delete your data.

Sign up
LOGIN
Reset Password

For more Lagoon Lining downloads, click here:

More Downloads
